Original Driiven Electric Moulton
Premium Electric Bike Now Including A Complimentary Driiven Starter Kit
Generation 2 Motor Now Available!
The wireless electric Moulton, handcrafted in England, is the perfect bike for riders seeking maximum performance in an urban environment – some have even likened it to driving an Aston Martin. Alongside comfort and exceptional portability, with a frame that instantly adjusts to changing field conditions, this wireless and self charging electric Moulton can be easily separated for storage purposes. The combination with the Original Driiven Generation 2 E-Solution results in a unique wireless electric bike, which maximises rider comfort and efficiency while providing a perfect balance of both battery and rider’s capabilities.
Our Driiven E-Moulton Starter Kit Includes:

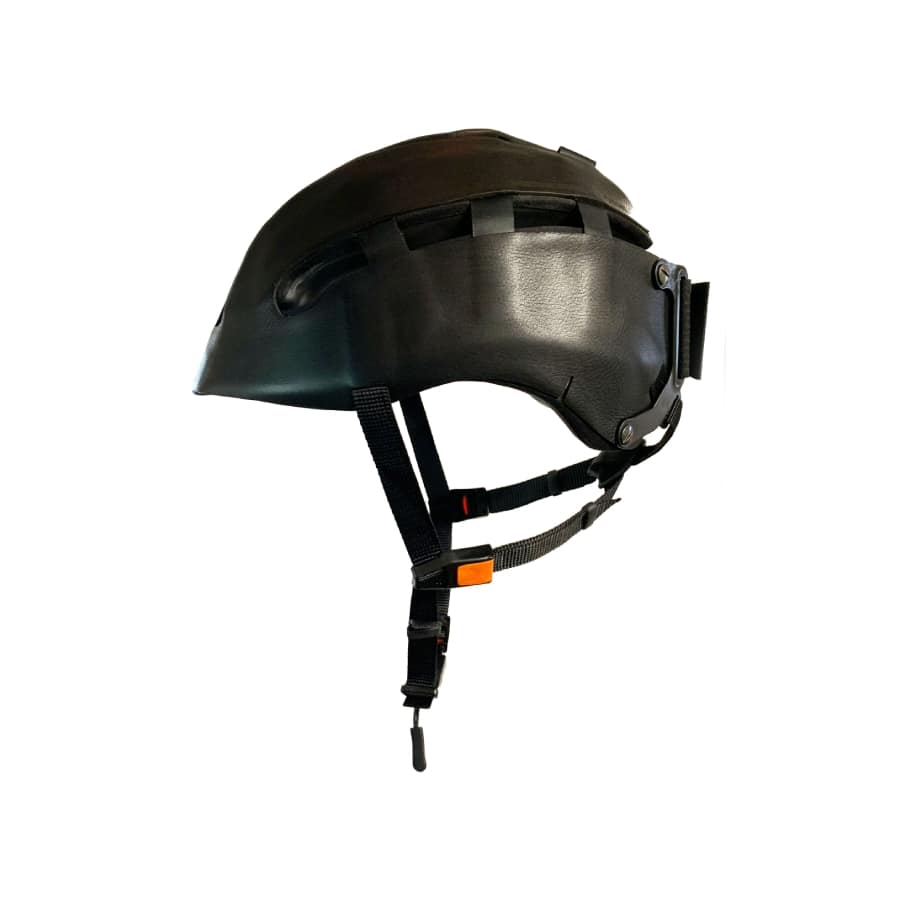

*Hedkayse Premium Leather Helmet

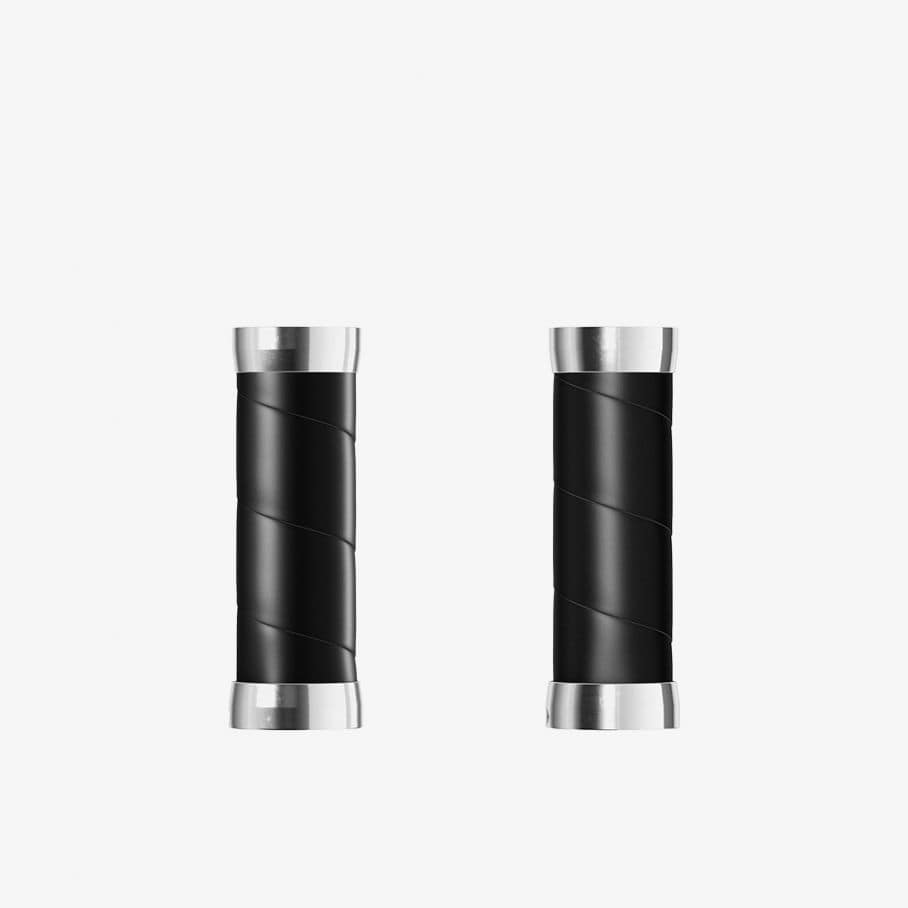

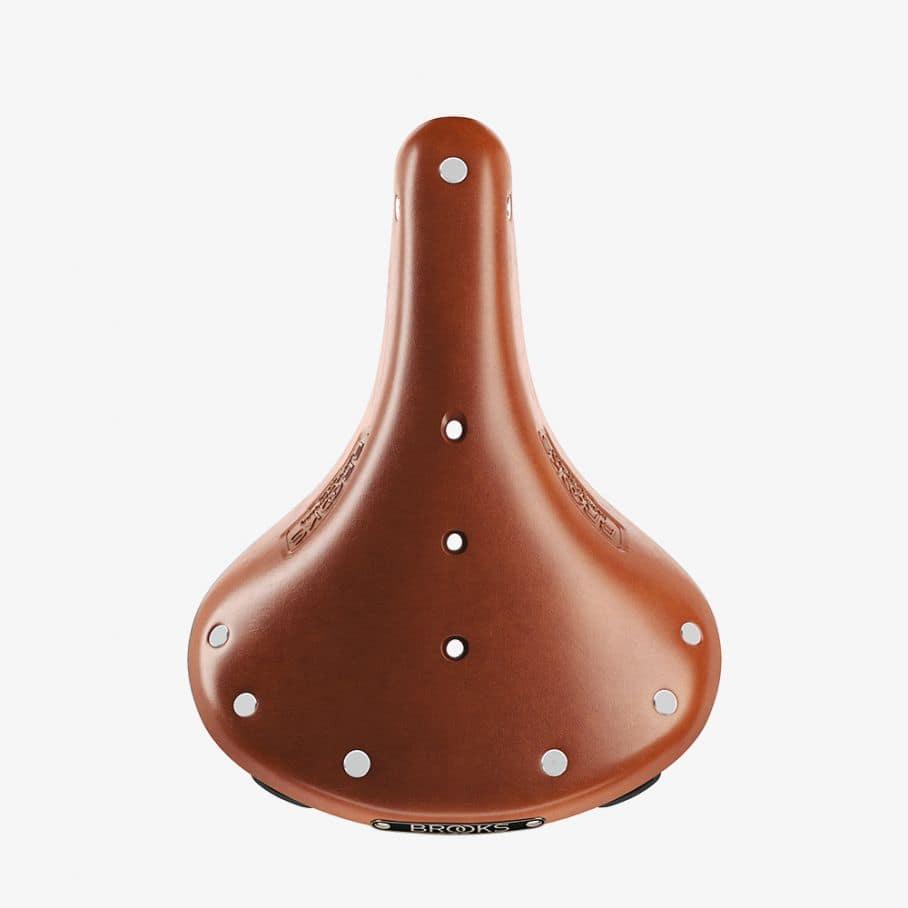

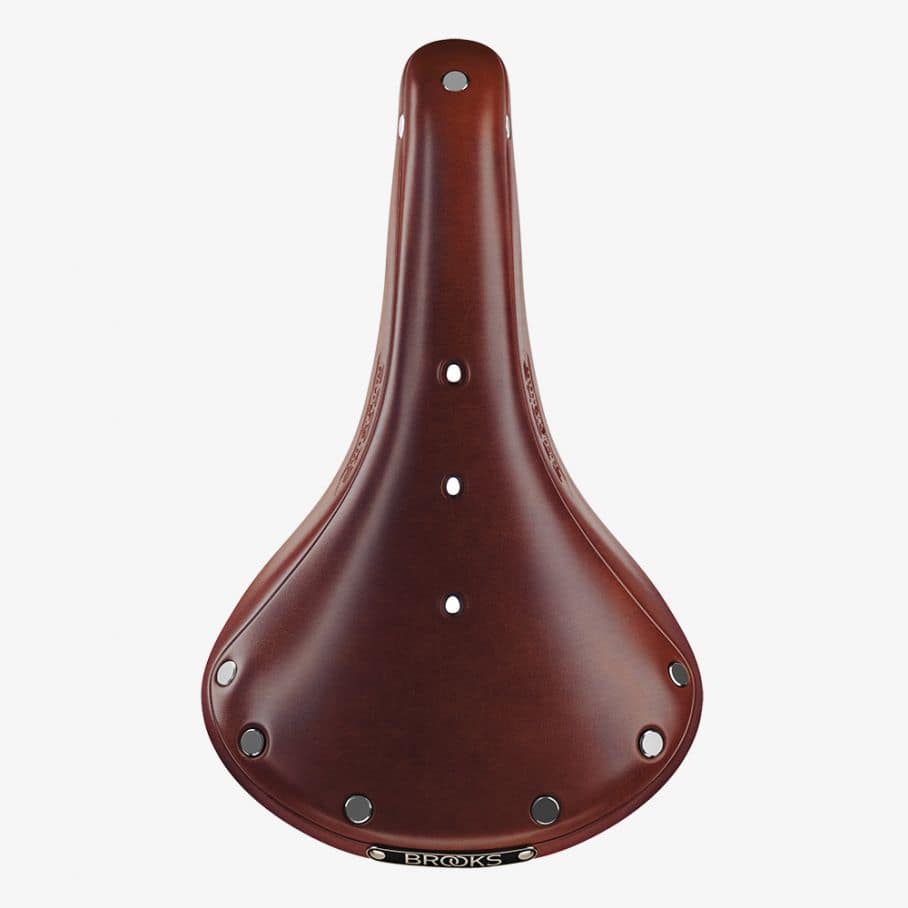

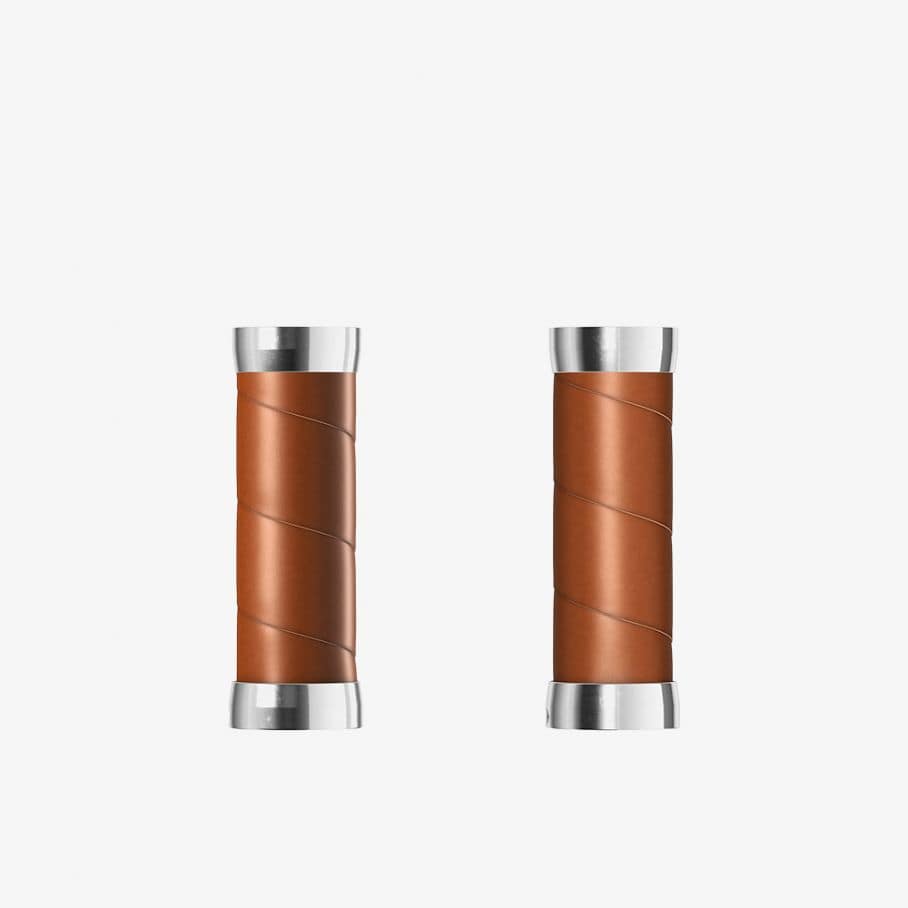

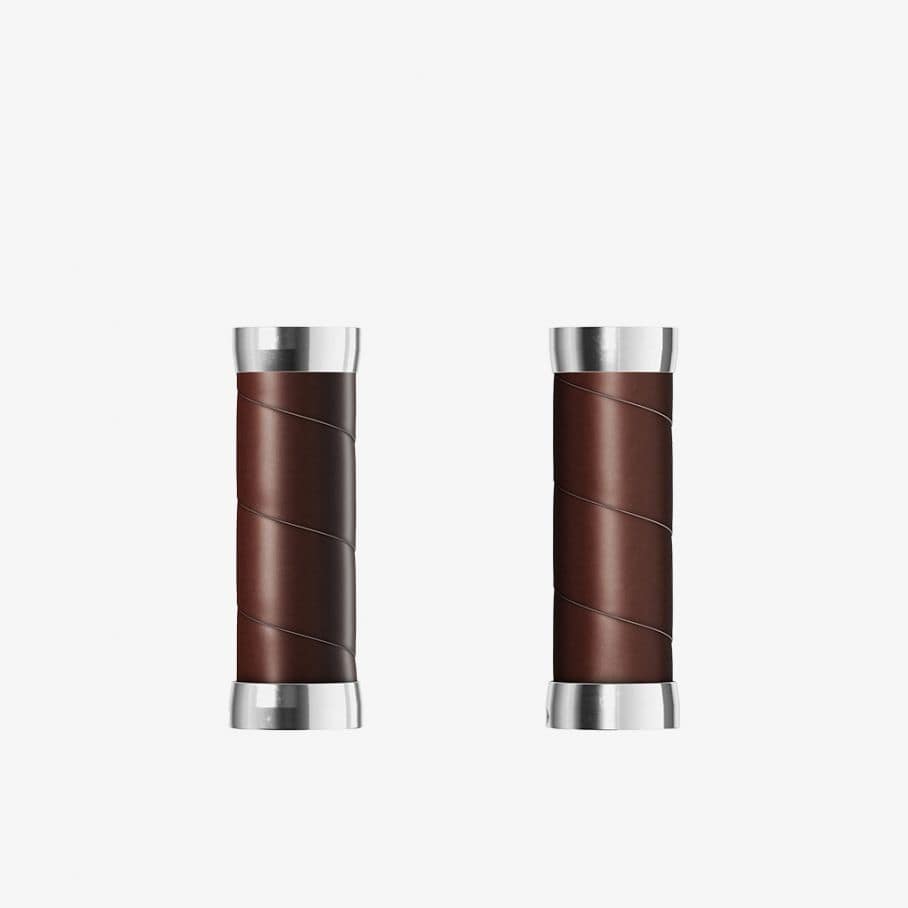

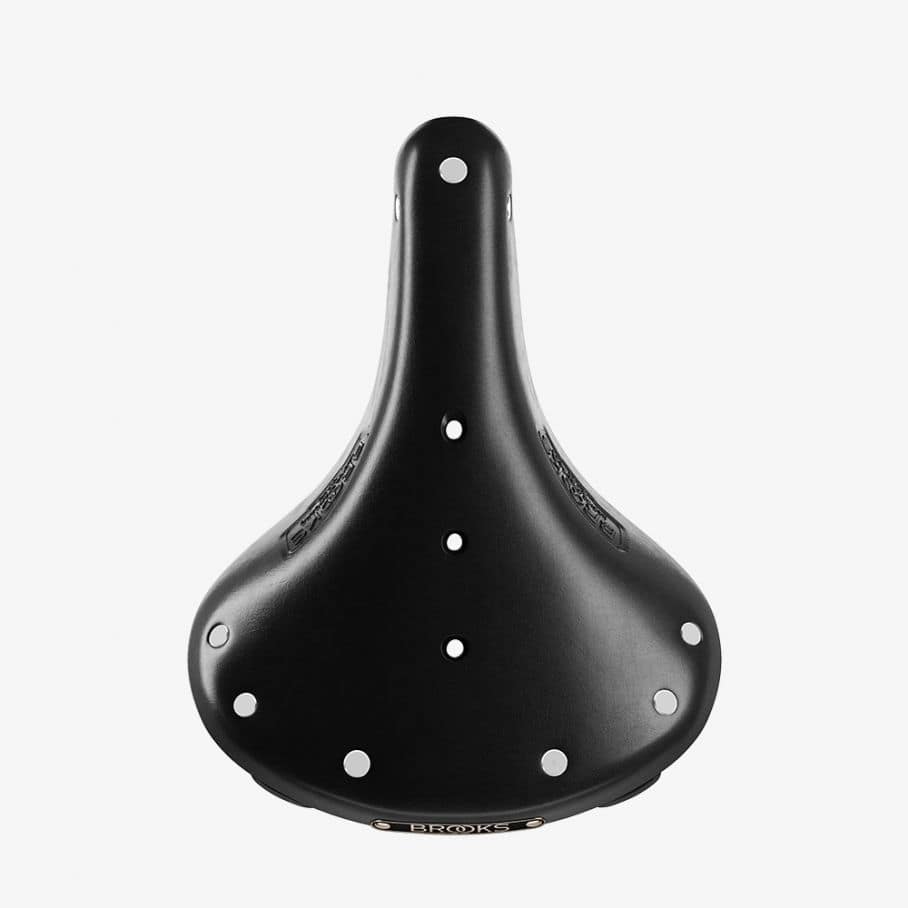

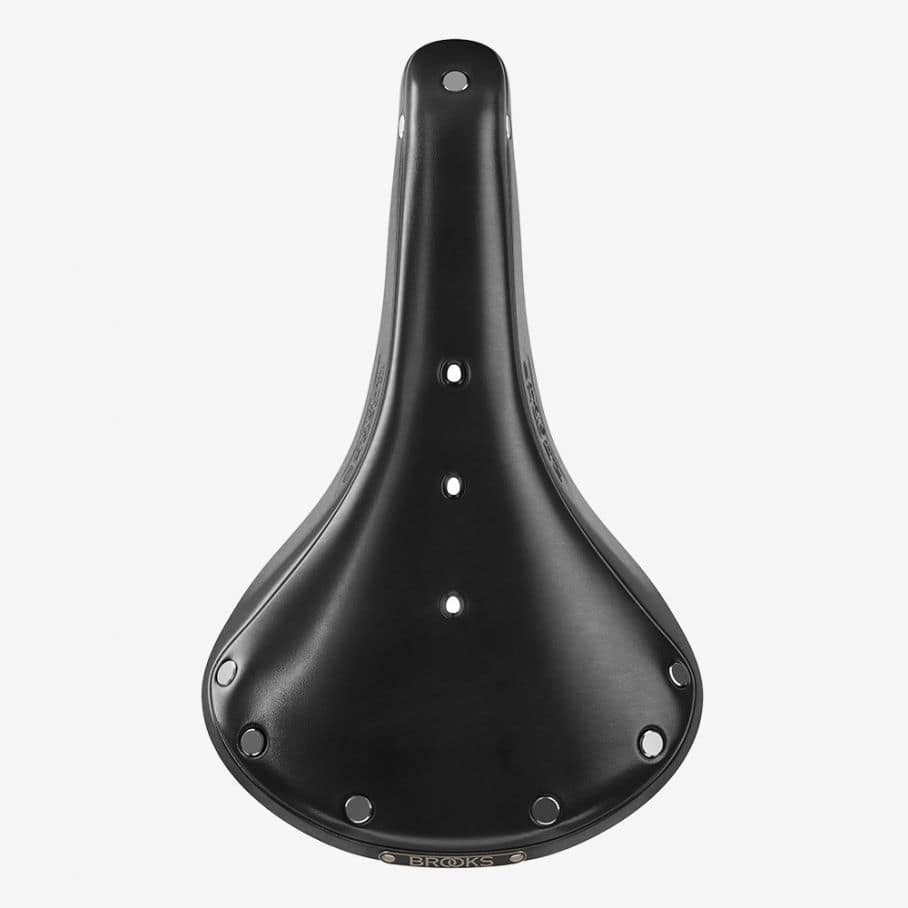

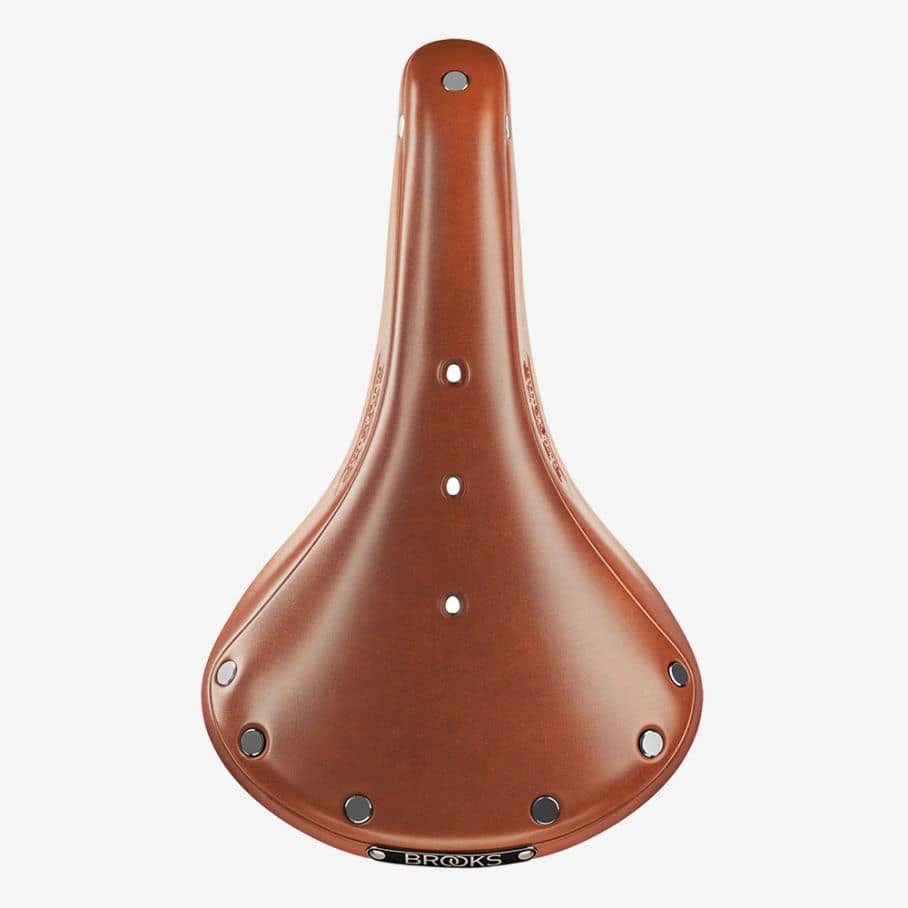

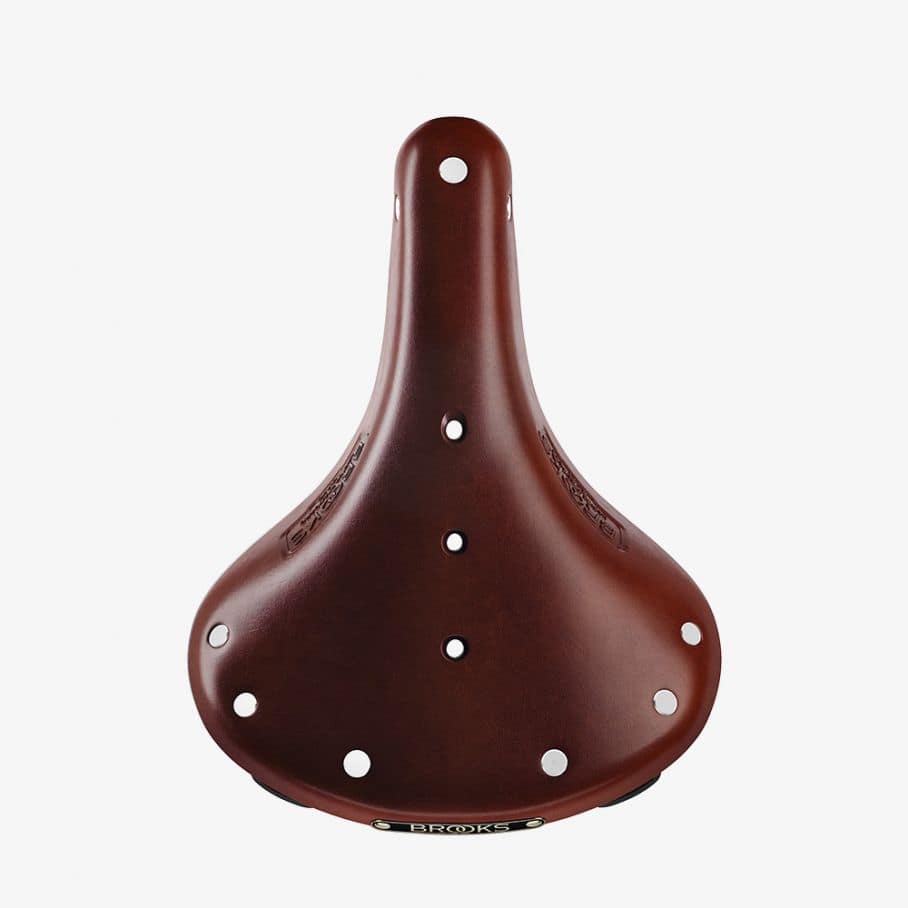

*Brooks Premium Leather Saddle (B17) and Grips
*Dry Patch Vello Premium Protective Seat Cover

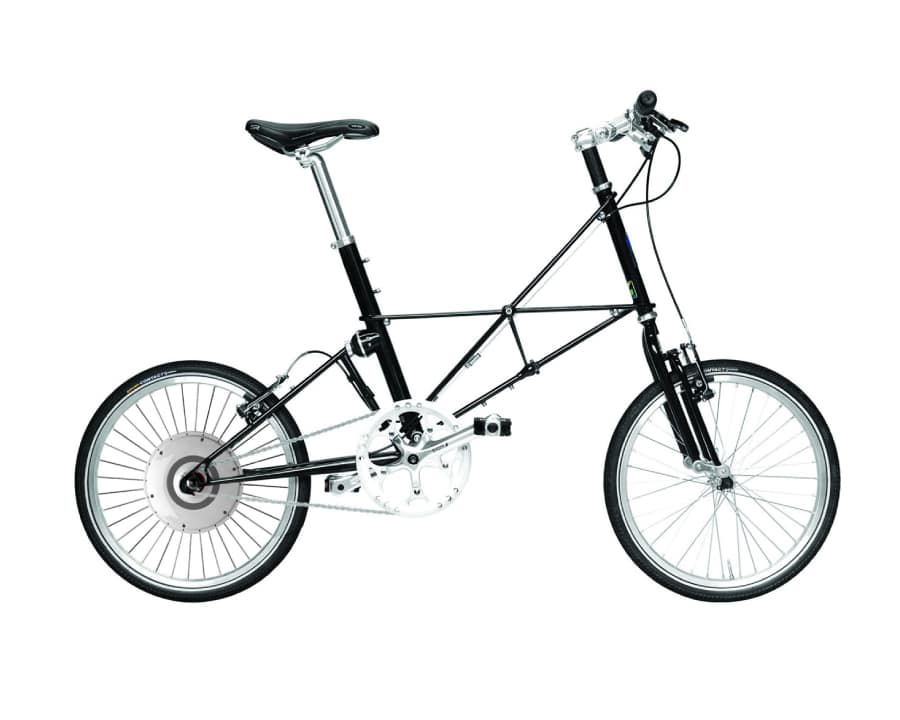

Electric Moulton
Premium Urban Electric Bike
Handcrafted in England, the Electric Moulton is the perfect bike for riders seeking maximum performance in an urban environment, alongside comfort and exceptional portability, with a frame that quickly adjusts to changing field conditions, and can be quickly folded for storage purposes. The combination with the ZEHUS ‘all-in-one’ hub motor results in a unique Electric bike, which maximises rider comfort and efficiency while providing a perfect balance of both battery and rider’s capabilities.
Optional With Schlumpf Drive
Thanks to the intelligent motor control, the electric Moulton does not need a gear shift at speeds from 0-25km/h. Even slopes up to 8% (very rare in urban areas) can be handled without problems.
Additionally, we offer a 2-gear-transmission to ride mechanically over 25km/h at a comfortable cadence (Schlumpf Speed Drive) or to be able to ride up steep hills with ease (Schlumpf Mountain Drive).
The Schlumpf drive is an ultra-flat planetary transmission mounted on the bottom bracket like a chainwheel with a transmission ratio of 1:1,65 for the Schlumpf Speed Drive or with a transmission ratio of 2,5:1 for the Schlumpf Mountain Drive.

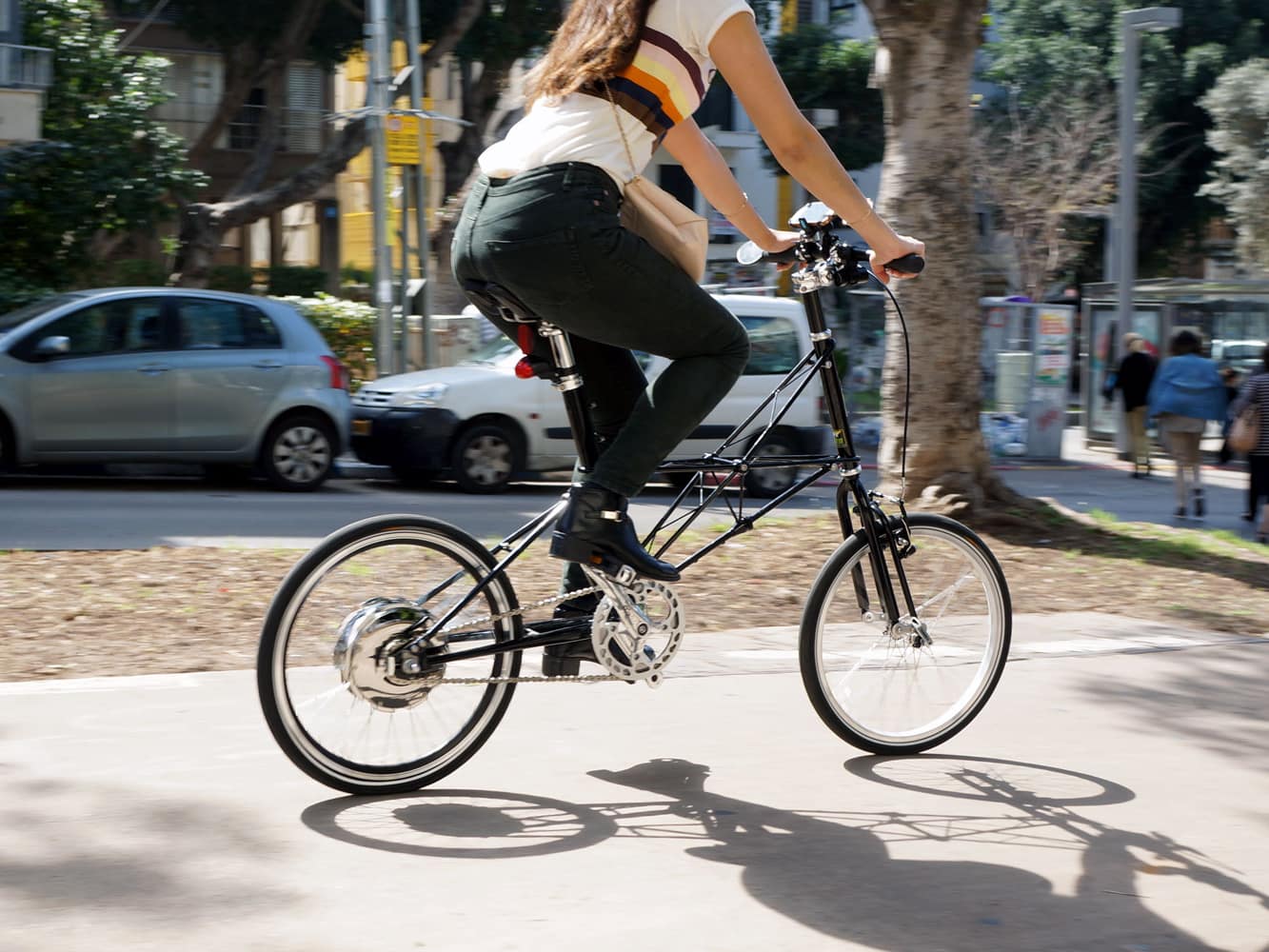

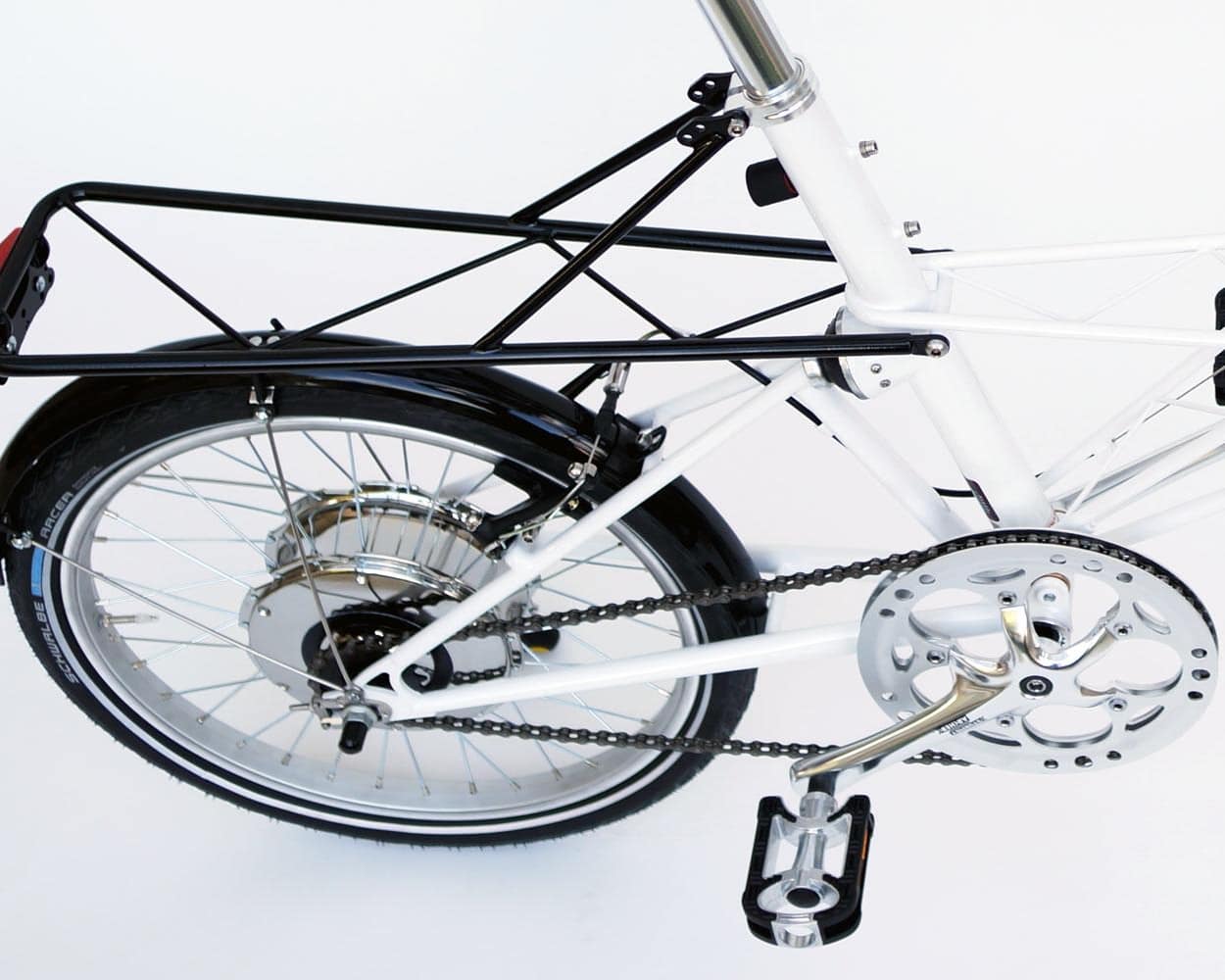

Electric Moulton Rear Wheel Drive
The biggest advantage to rear wheel drive is that it spreads loads of the bike across both wheels. The rear wheel does the pushing while the front wheel is reserved for the steering duties. On a front wheel drive the front wheel must perform both functions.
RWD acceleration is better from a stop. A bike’s weight shifts to the rear part at the time of acceleration from a stop, which puts extra weight to the rear. As a result, the overweight increases the traction of the tires and promotes faster acceleration.
Better balance = better handling around corners and curves particularly at faster speeds
→ Provides the rider with better traction
→ Increases safety and stability
→ Does not affect the unique Moulton ride experience

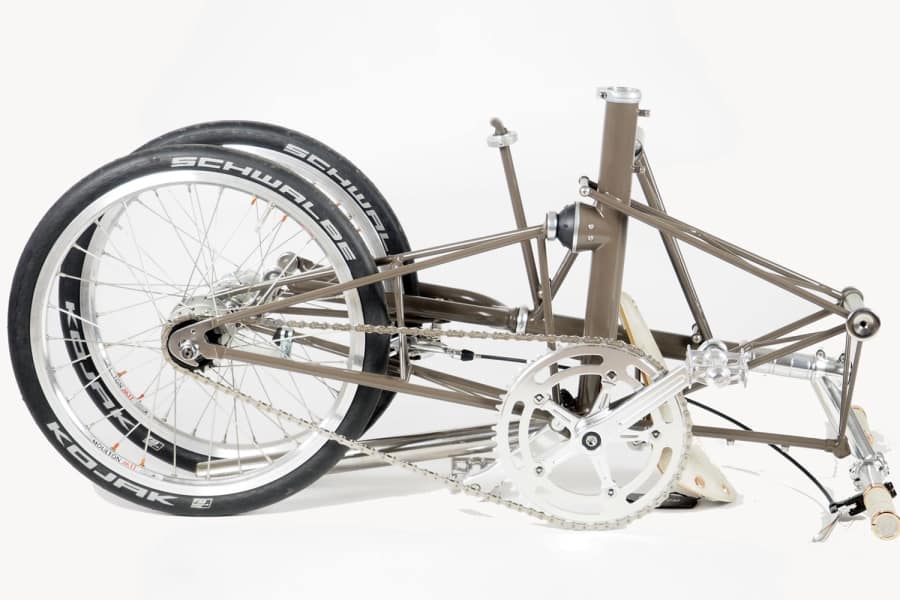

Separable And Adaptable
All electric Moulton bicycles are inherently more compact and most feature separable frames for storage or transport. This separability introduces no compromises other than a little extra weight; there is no loss of stiffness or ride quality.

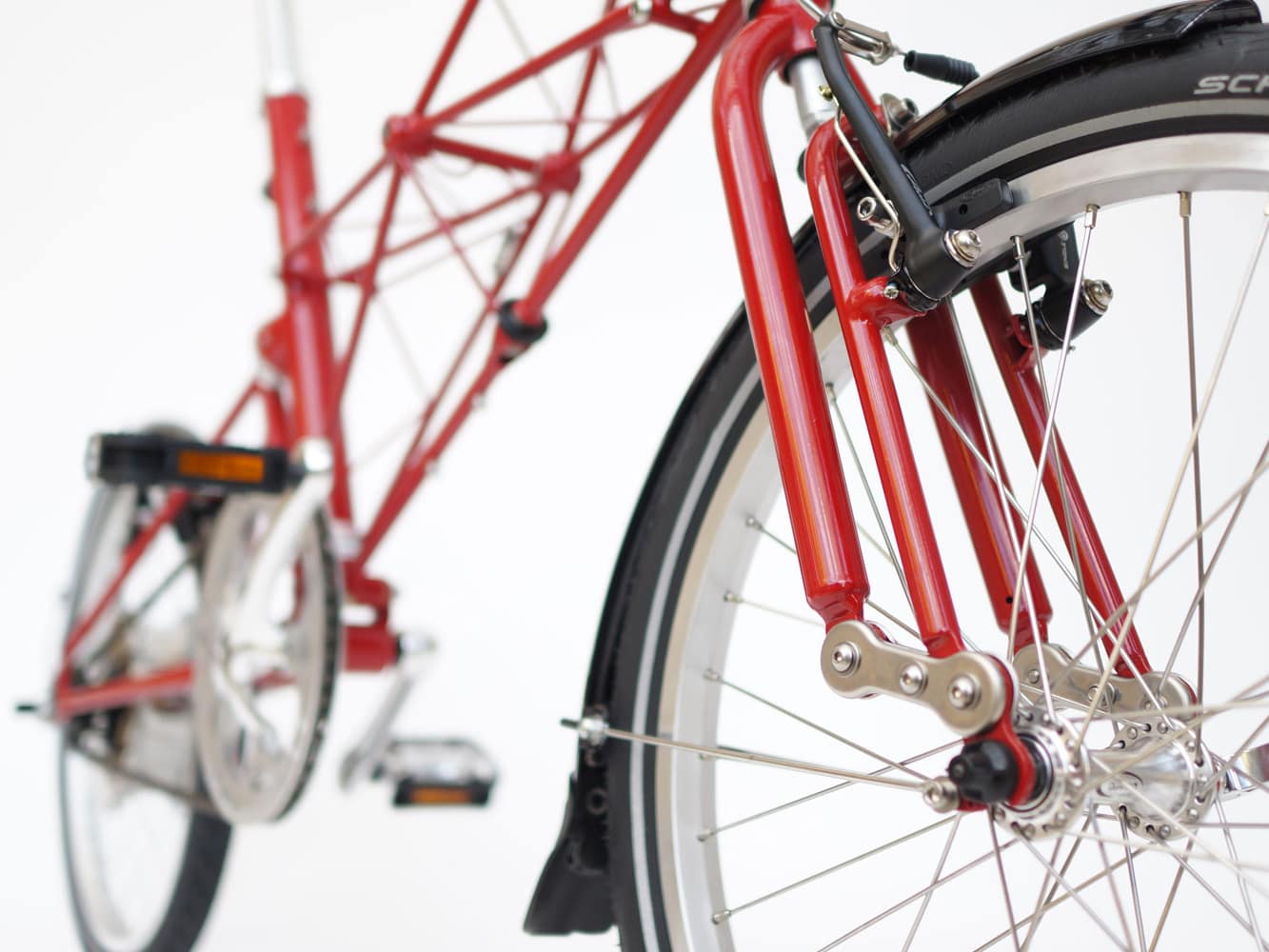

Unique Suspension – Front
The Flexitor® front suspension system utilizes rubber in torsion, eliminating lubrication, wear, and ‘stiction’. This provides unparalleled shock isolation and a uniquely silky ride.

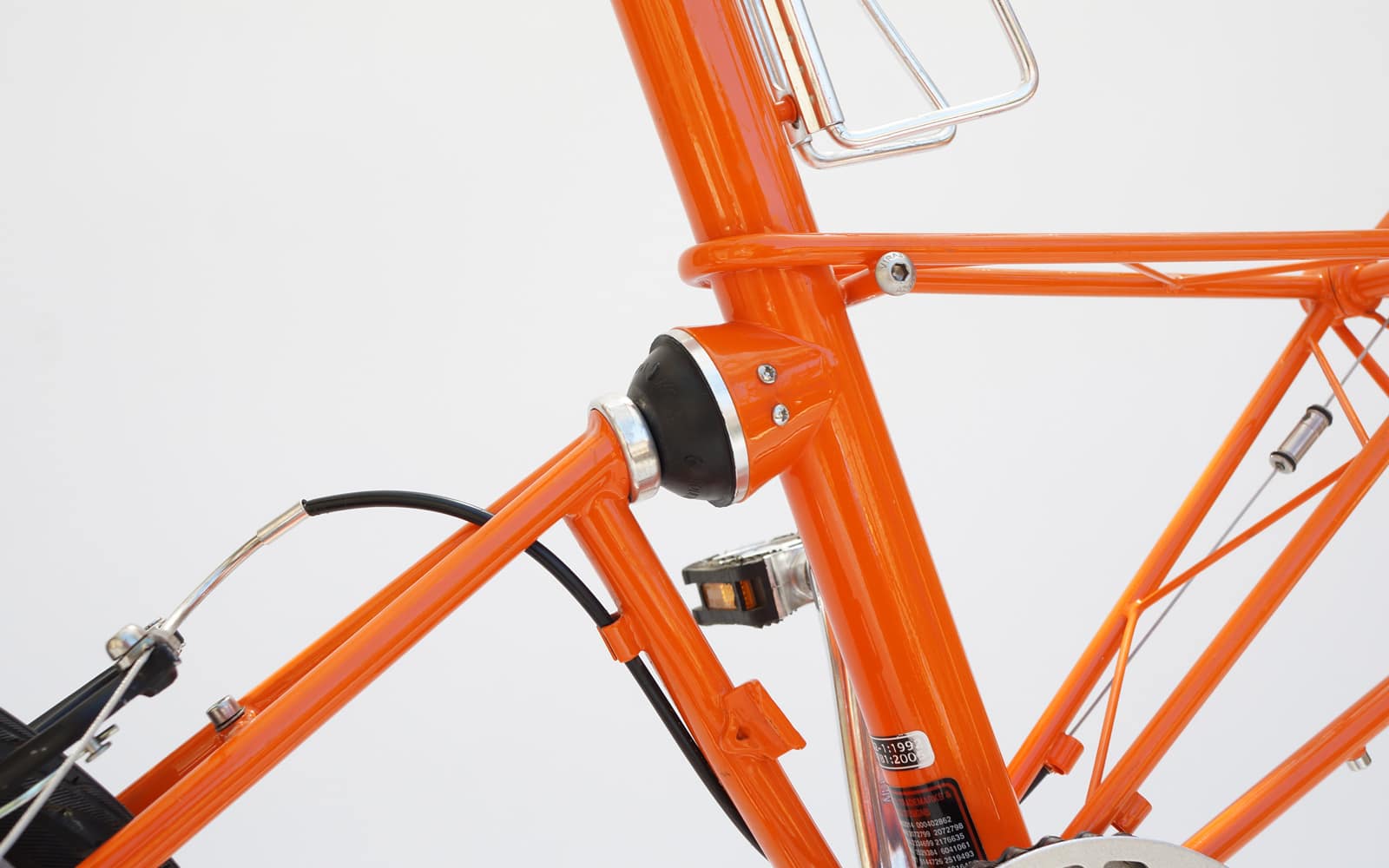

Unique Suspension – Rear
Full suspension is a fundamental feature of all electric Moulton bicycles. The Hydrolastic® suspension on the New Series Moultons features a rubber spring with adjustable fluid damping.
Small Wheels
20″ wheels with high pressure tyres have been integral to the electric Moulton design from the beginning. The combination of the lower rolling resistance of high pressure tyres and the lower aerodynamic drag of small wheels, allows the bicycle to go faster with less effort.

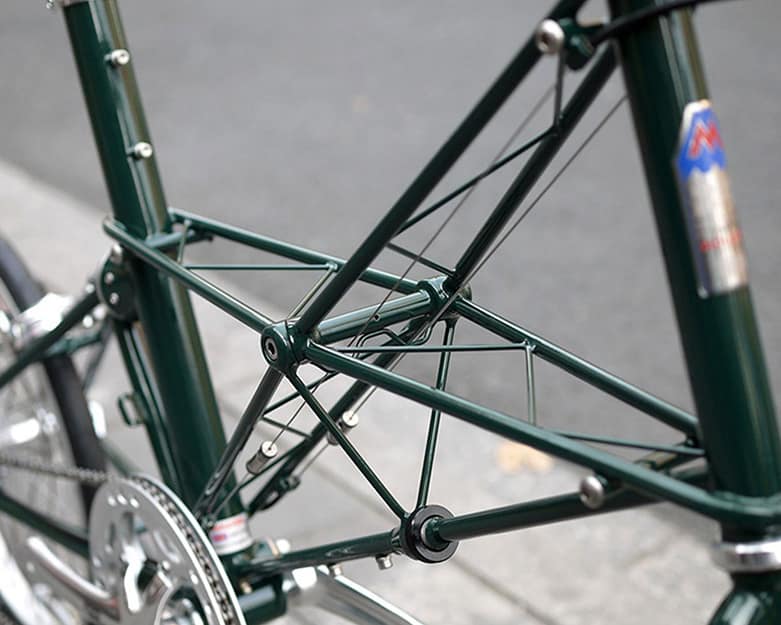

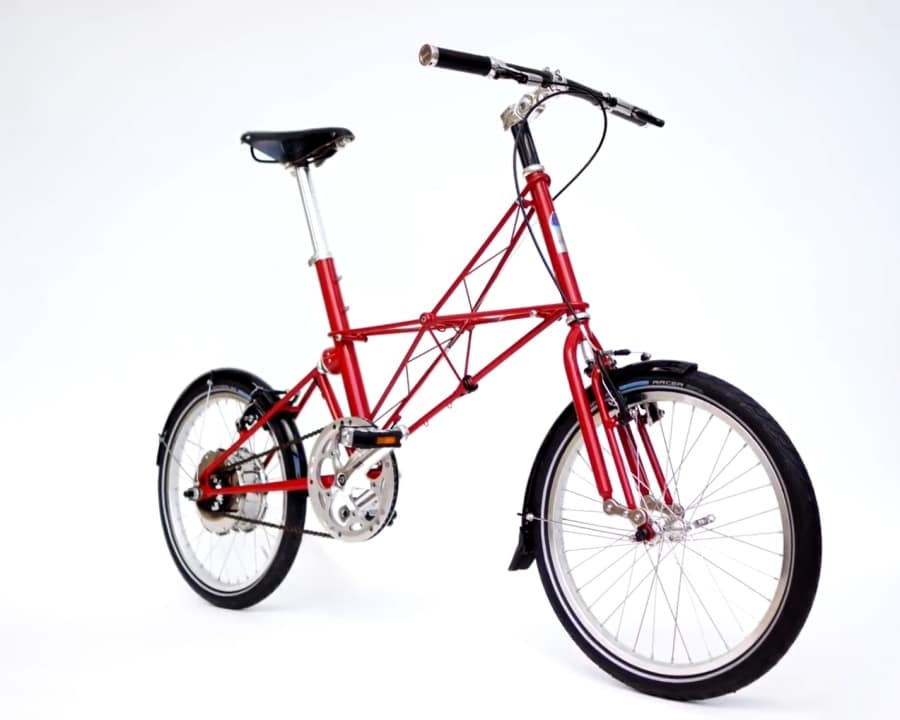

Stiff Space Frame
The unique Moulton space frame, a highly engineered lattice of small diameter tubes, is far stiffer than a conventional diamond frame. This frame architecture fits riders of all sizes and the low step-through allows the bike to be mounted with ease by both sexes.
Technical Data
- Motor: 250 W
- Max. speed: 25 km/h max. with motor assistance and up to 40 km/h manually using the optional Schlumpf speed drive gear system
- Battery life cycle: >1,000 cycles
- Range: From approx. 30-50 km (31 miles) in Turbo mode to theoretically unlimited range using the self-charging technology
Driiven E-Moulton – Whats In The Box?

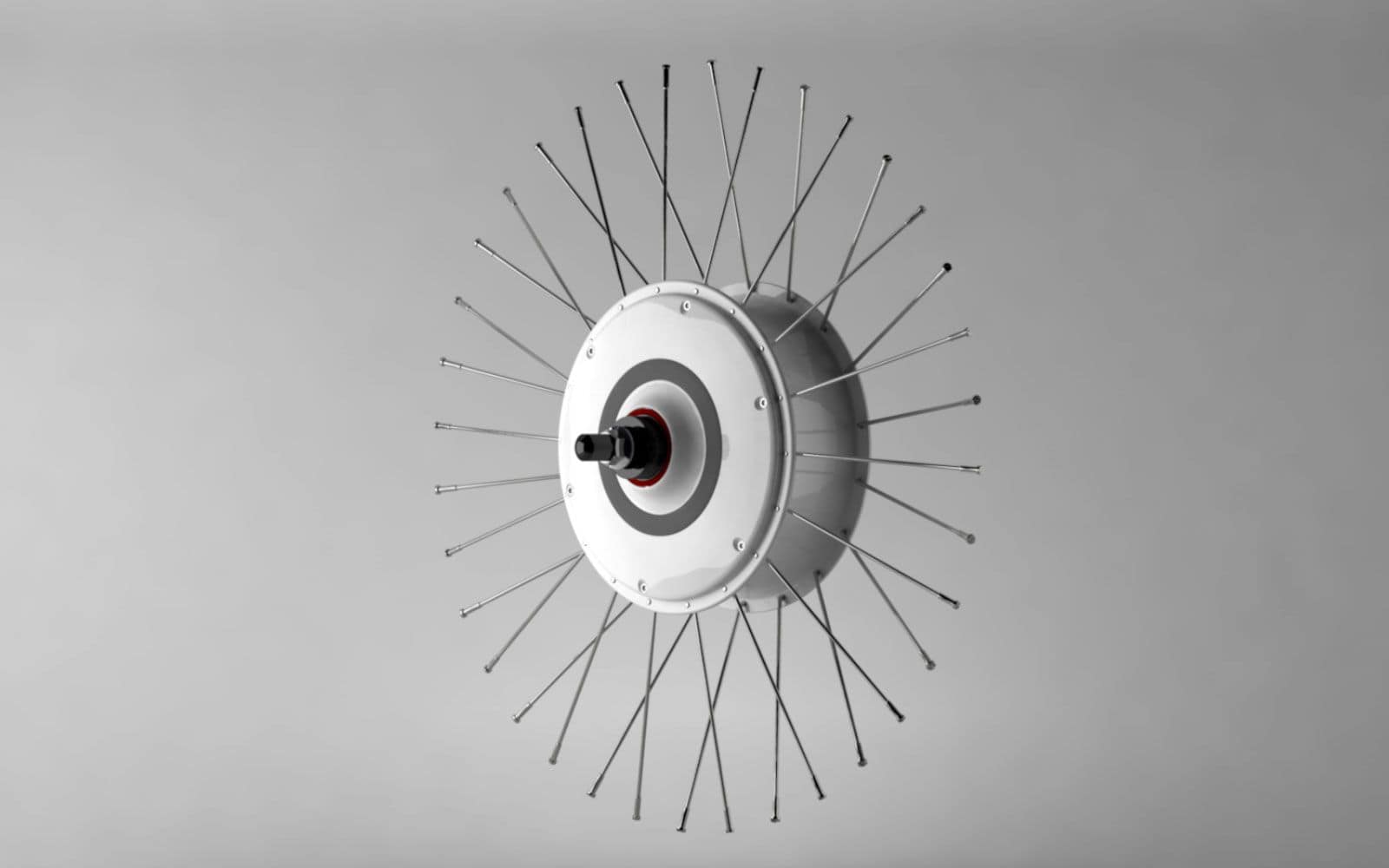

Moulton TSR9 with integrated Driiven smart wheel powered by Zehus and original charger. Now with complimentary Brooks Leather Saddle and Grips.
What people are saying…
Anoff D, Spain
5 Stars: Excellent
Incredible range of pertinent products for everyone’s pleasure.Exceptional service to keep me coming back. Always looking out for new innovations in their range of products.
Standard Colours
It is One, but it takes it all
Discover the lightest and most compact ebike system in the world. With Bike All-In-One everything is combined in one: battery, sensors, Bluetooth for wireless connection to your smartphone and the optional remote control on the handlebar. No annoying cables!
The integrated and unique Kinetic Energy Recovery System (KERS) allows the motor to store the energy and converts it back to motor power when needed.
With the cassette option, BIKE All-In-One is more versatile than ever. You can explore further terrains thanks to the range of gears without compromising the design of your e-bike.
Customize your ride with BitRide Connect and select the amount of effort that you want to use while riding. Choose between 4 power modes: No Assist, Eco, Turbo and Custom (enabling you to create your own mode).
The electric assistance offers a range of 35 to 45km in “Turbo” mode and up to 60km in Eco mode.
Bike All-In-One Features
Extended Range
The new heart of our All-In-One Generation 2 is more efficient than ever, we extended the range by 20%. Now you will be capable to ride at least 45 km with the strongest power mode or 60km in Eco mode.
Powerful motor
With All-In-One Generation 2 we increased torque by 50%. Now All-In-One is a 250W motor with a torque output of 40 Nm.
Digital connectivity to power up your ride
Our new generation hub is also updated Over The Air. Bluetooth 5.1 makes your bike a wearable device.
Active Electric Lock
Our active electric lock system and the location tracking (that needs GPS on) are specially designed to guarantee your peace of mind. We’re putting bike thieves out of business with our integrated security tech.
Smart electronics
The Driver controls all onboard systems, processing real-time motor feedback to ensure maximum range and motor responsiveness.
KERS
The Smart Energy Recovery
The integrated Kinetic Energy Recovery System (KERS), commonly used in motorsports, allows the motor to collect braking energy and recharge the batteries.
You have to pedal backwards or press a button on the optional remote controller, and the integrated KERS activates the motor brake and recharges the battery.
As soon as you stop backpedalling, the motor will stop braking.
This way you have the power you need uphill and you simply get the energy you used up downhill.
Multispeed version
Discover new opportunities!
Uptown city style or bumpy backroads, the Multispeed version helps you enjoy the journey.
With the cassette option, BIKE All-In-One is more versatile than ever.
You can choose between a 4, 7 or 9 gears.
You can explore further terrains thanks to the range of gears without compromising the design of your e-bike.
Which Zehus E-Drivetrain fits you best?
Compare all the features of our All-In-One systems
BIKE
Motor Power
250W
Power mode
4
(NO ASSIST, ECO, TURBO, TURBO CUSTOM)
Range
35/45km in Turbo mode
and up to 60km in Eco mode.
Battery
30v Li-ion
173Wh
>1.000 cycles
Weight
3 Kg
KERS
Yes
Automatic Energy Recovery
No
Multispeed
4/7/9 speed
Slope and quality road detection
No
Active Lock
Yes
Rim size
From 16’’ up
Remote Controller
Yes
Bluetooth connection with Bitride Connect App
Yes
BIKE +
Motor Power
250W
Power mode
6 (NO ASSIST, BIKE+, HYBRID, HYBRID CUSTOM, TURBO, TURBO CUSTOM)
Range
50 km in Turbo mode, 75 km in Hybrid and no range limit in BIKE+ (it’s a self-sustaining system)
Battery
30v Li-ion
173Wh
>1.000 cycles
Weight
3 Kg
KERS
Yes
Automatic Energy Recovery
Yes
Multispeed
No
Slope and quality road detection
Yes
Active Lock
Yes
Rim size
From 16’’ up
Remote Controller
Yes
Bluetooth connection with Bitride Connect App
Yes
Remote Controller
Expand your options of fun, discover the new Remote Controller designed to maximize your riding experience!
Bitride Connect App
Download BitRide App and connect your smartphone to the motor and remote control via Bluetooth. Register your vehicle, set the power modes, access customer care and live diagnostics.!
Cycle Schemes We Work With
Cycle Schemes We Work With
Additional information
| Colour: | Duck Egg Blue, Ferrari Red, Jet Black, Vintage Racing Green |
|---|---|
| Speed - Schlumpf | Standard, Speed Drive, Mountain Drive |
| Shimano Gearing | No Shimano Gearing, 4 Speed Gearing |
